Beskrivning

Ref. No. 24715100 (21951346, 3862281, 877400, 3858256, 806590, 875811, 825940, 876243, 3855546, 3856039, 3850107)

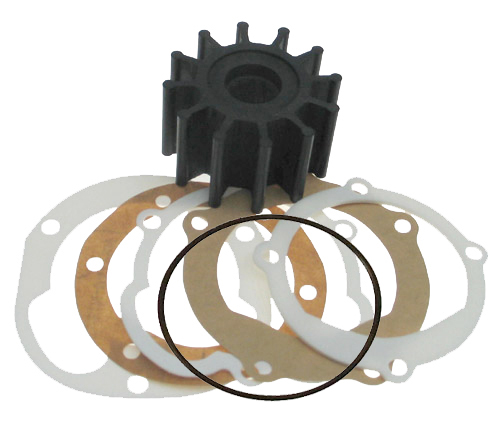

Impeller med splines, Ø 57 mm, H = 31 mm.

Passar:

AQ150, AQ150A, AQ150B
D2-50F
D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-55F
D2-75A, D2-75B, D2-75C, D2-75F
2003T, 2003TB
AQD21A (Upp till motor MO -103386)
MD21A (Upp till motor MO -103386)
MD22A, MD22L-A, MD22L-B, MD22P-B
TAMD22P-B
TMD22A, TMD22B

För pump med remdrift:
3,0-BY, 3,0-EF, 3,0-LK, 3,0-WT
3,0GL-MD
3,0GLM-A, 3,0GLM-B, 3,0GLM-C
3,0GLP-A, 3,0GLP-B, 3,0GLP-C
3,0GS-HU, 3,0GS-MD, 3,0GS-NC
3,0GSM-A, 3,0GSM-B, 3,0GSM-C
3,0GSP-A, 3,0GSP-B, 3,0GSP-C
4,3Gi-BY, 4,3Gi-EF, 4,3Gi-LK, 4,3Gi-NC, 4,3Gi-WT
4,3GL-A, 4,3GL-B, 4,3GL-BY, 4,3GL-C, 4,3GL-D, 4,3GL-EF, 4,3GL-HU, 4,3GL-LK, 4,3GL-NC, 4,3GL-WT
4,3GS-BY, 4,3GS-HU, 4,3GS-LK, 4,3GS-NC, 4,3GS-WT
4,3GXi-A, 4,3GXi-B, 4,3GXi-BF, 4,3GXi-C, 4,3GXi-CF, 4,3GXi-D, 4,3GXi-DF, 4,3GXi-E, 4,3GXi-EF
4,3OSi-B, 4,3OSi-BF, 4,3OSi-C, 4,3OSi-CF, 4,3OSi-D, 4,3OSi-DF, 4,3OSi-E, 4,3OSi-EF
5,0Gi-BY, 5,0Gi-EF, 5,0Gi-WT
5,0GL-A, 5,0GL-B, 5,0GL-BY, 5,0GL-C, 5,0GL-D, 5,0GL-E, 5,0GL-EF, 5,0GL-WT
5,0GS-BY, 5,0GS-EF, 5,0GS-WT,
5,0GSi-BY, 5,0GSi-EF, 5,0GSi-WT
5,0GXi-A, 5,0GXi-B, 5,0GXi-BF, 5,0GXi-C, 5,0GXi-CF, 5,0GXi-D, 5,0GXi-DF, 5,0GXi-E, 5,0GXi-EF
5,0OSi-B, 5,0OSi-BF, 5,0OSi-C, 5,0OSi-CF, 5,0OSi-D, 5,0OSi-DF, 5,0OSi-E, 5,0OSi-EF
5,7Gi-BF, 5,7Gi-BY, 5,7Gi-C, 5,7Gi-CF, 5,7Gi-D, 5,7Gi-DF, 5,7Gi-E, 5,7Gi-EF, 5,7Gi-LK, 5,7Gi-MD, 5,7Gi-NC, 5,7Gi-WT
5,7GiL-A, 5,7GiL-B, 5,7GiL-C, 5,7GiL-D, 5,7GiL-E
5,7GL-A, 5,7GL-B, 5,GL-BY, 5,7GL-C, 5,7GL-D, 5,7GL-E, 5,7GL-EF, 5,7GL-LK, 5,7GL-MD, 5,7GL-NC, 5,7GL-WT
5,7GLi-LK
5,7GS-BY, 5,7GS-EF, 5,7GS-LK, 5,7GS-WT
5,7GSi-BY, 5,7GSi-BF, 5,7GSi-LK, 5,7GSi-WT
5,7GSiL-A
5,7GXi-A, 5,7GXi-B, 5,7GXi-CF, 5,7GXi-D, 5,7GXi-DF, 5,7GXi-E, 5,7GXi-EF, 5,7GXi-F, 5,7GXi-FF
5,7GXiL-A, 5,7GXiL-B, 5,7GXiL-C, 5,7GXiL-D, 5,7GXiL-E, 5,7GXiL-F
5,7OSi-A, 5,7OSi-AF, 5,7OSi-B, 5,7OSi-BF, 5,7OSi-C, 5,7OSi-CF, 5,7OSi-D, 5,7OSi-DF
5,7OSXi-A, 5,7OSXi-AF, 5,7OSXi-B, 5,7OSXi-BF, 5,7OSXi-C, 5,7OSXi-CF, 5,7OSXi-D, 5,7OSXi-DF
7,4Gi-BY, 7,4Gi-EF, 7,4Gi-LK, 7,4Gi-NC, 7,4Gi-WT
7,4GL-BY, 7,4GL-HU, 7,4GL-LK, 7,4GL-MD, 7,4GL-NC
7,4GSi-BY, 7,4GSi-EF, 7,4GSi-HU, 7,4GSi-LK, 7,4GSi-NC, 7,4GSi-WT
8,1Gi, 8,1Gi-A, 8,1Gi-B, 8,1Gi-BF, 8,1Gi-C, 8,1Gi-CF, 8,1Gi-D, 8,1Gi-DF, 8,1Gi-E, 8,1Gi-EF, 8,1Gi-F, 8,1Gi-FF
8,1GiL-A, 8,1GiL-B, 8,1GiL-C, 8,1GiL-D, 8,1GiL-D, 8,1GiL-E, 8,1GiL-F
8,1GSi, 8,1GSi-A
8,1GSiL-A
8,1GXi-A, 8,1GXi-AF, 8,1GXi-B, 8,1GXi-BF, 8,1GXi-C, 8,1GXi-D, 8,1GXi-DF, 8,1GXi-E, 8,1GXi-EF
8,1GXiL-A, 8,1GXiL-B, 8,1GXiL-C, 8,1GXiL-D, 8,1GXiL-E
8,1L GAS
8,1OSi-A, 8,1OSi-AF, 8,1OSi-B, 8,1OSi-BF
8,1DPX375-A, 8,1DPX375-B, 8,1DPX375-BF, 8,1DPX375-CF
8,1DPX420-A, 8,1DPX420-B, 8,1DPX420-BF, 8M1DPX420-CF
8,2Gi-EF, 8,2Gi-WT
8,2GL-WT, 8,2GL-MD
8,2GSi-BY, 8,2GSi-EF, 8,2GSi-LK, 8,2GSi-NC, 8,2GSi-WT

För tidigare motorer med vevaxelmonterad pump med fyra skruvar i impellerlocket:
430A, 430B, 431A, 431B
500A, 500B, 501A, 501B, 570A, 572A
AQ175A
AQ200D, AQ200F, AQ205A, AQ211A
AQ225D, AQ225E, AQ225F
AQ231A, AQ231B
AQ255B
AQ260A, AQ260B
AQ271A, AQ271B, AQ271C, AQ271D
AQ280A, AQ290A
AQ311A, AQ311B
BB225A, BB225AV, BB225B, BB225C, BB231A
BB260A, BB260AV, BB260B, BB260C, BB261A
115042
